Dynamic test benches|Main shaft fatigue test bench

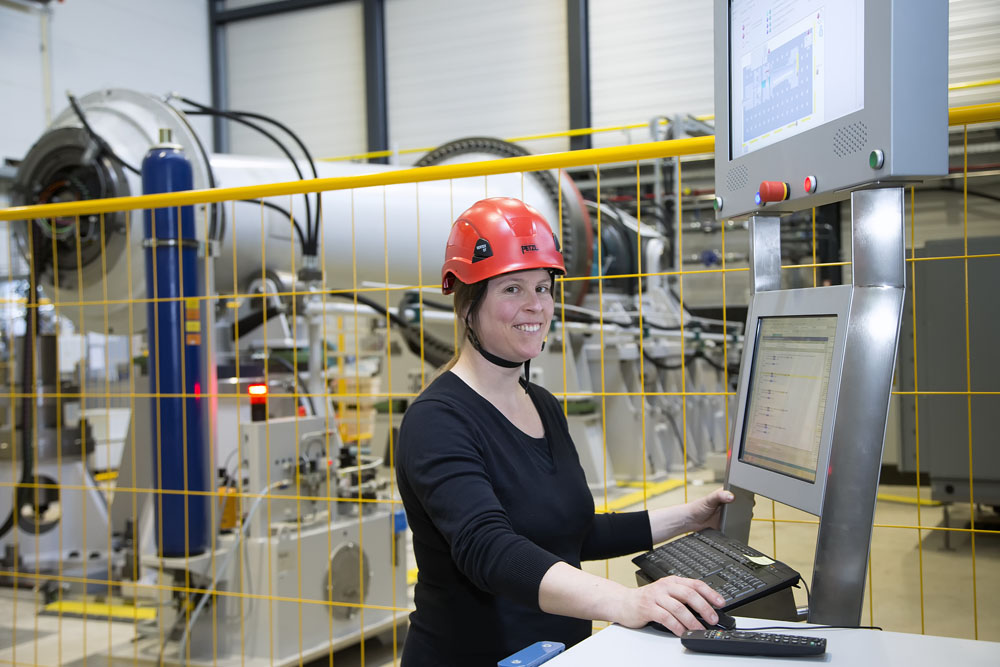

For the first time in Germany a test bench for wind turbine main shafts is accessible to the public at Fraunhofer IWES. With this test bench it is possible to simulate 20 years of main shaft operation time within half a year of testing.

The „BeBen“ project

„BeBen“ is the title of a long term collaborative research project between Hamburg University of Applied Sciences (HAW), Suzlon Energy GmbH and Fraunhofer IWES, funded by the BMWI (Federdal Ministry for Economic Affairs and Energy). „BeBen“ is a German abbreviation and can be translated as accelerated experimental endurance strength verification for large wind turbine components using the example of main shafts.

The project‘s major aims can be summarized as:
• Comparison of theoretical and experimental endurance strengths
• Adjustment of certification guidelines
• Material savings

Some highlights of the project scope:
• Material tests (s-n curve, impact test)
• Development and acquisition of a main shaft fatigue test bench
• Full scale main shaft fatigue tests

Finding an Appropriate Test Bench Designt

The aim of the fatigue tests is not only to damage the specimen, rather it is important to reproduce a realistic loading and thus wear and tear as occur in operational wind turbine main shafts. For this reason we have conducted a detailed analysis of simulated and measured load time series for the main shaft. After processing the data using the „Rain-Flow-Counting“ method, lifetime damage was calculated based on Miner‘s rule. An important output of those analyses is the information on which degrees of freedom are relevant for fatigue damage mechanisms and thus helping us to design an adequate test bench.
